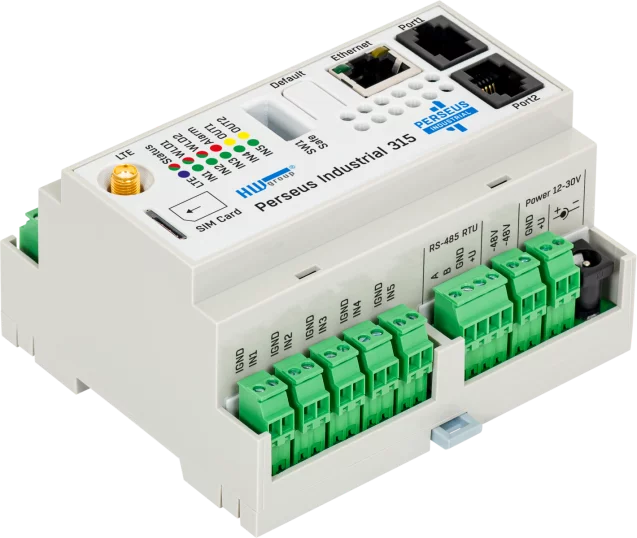

Perseus Industrial 315 RTU with LTE Modem
Select a SensDesk 5D-F Personal License (Free for 5 years).
Extra Services: Installation and Support Plans.
Lead Times & Delivery Guide – contact us for a specific day/time
Our Price Check Guarantee ensures value for money when buying this product
Pay using our secure payment gateway with a debit/credit card, your Amazon, Google or PayPal account, make a BACS payment, open a credit account or request a leasing quotation.
Perseus Industrial 315 is a scalable DIN rail LAN and LTE monitoring and control unit for industrial, infrastructure and environmental applications. It connects physical sensors, digital Inputs/Outputs, WLD (water leak detection) cables and third-party meters via LAN or Modbus/RTU. With wide alerting options, open APIs and Portal support, it is ideal for professional remote monitoring and site automation.
The Perseus Industrial 315 unit has a built-in LTE modem that serves as an SMS gateway for Perseus itself as well as other connected HW group devices, and also provides back up connectivity to the Portal.

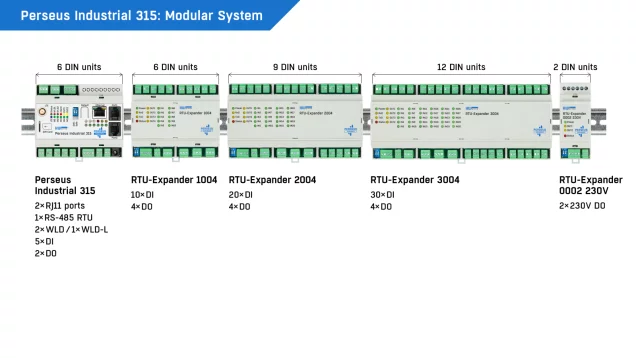

The expandable architecture of Perseus 315 is based on RTU and DIN rail expanders to allow the connection of multiple DI/DO in various combinations. Perseus Industrial 315 combines data from external physical sensors, detectors and meters with data from other HWg devices connected via a local area network. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.
The expandable architecture of Perseus 315 is based on RTU and DIN rail expanders to allow the connection of multiple DI/DO in various combinations. Perseus Industrial 315 combines data from external physical sensors, detectors and meters with data from other HWg devices connected via a local area network. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.

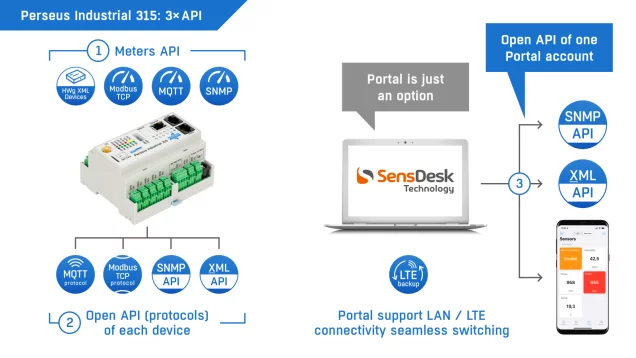

The Perseus platform supports wide alerting options (Email, SNMP Trap), Open API (BACnet, Modbus/TCP, MQTT). Meters API allows Perseus Industrial 315 to collect values from other HWg devices (e.g. STE2 R2) over LAN and use them for local conditions, alerts, scripts or Portal visualization. This makes Perseus not only a sensor device, but also a local data concentrator for distributed monitoring systems. External sensors can be connected to 2xRJ11 ports (1WU) or to RTU (RS-485) terminal block.
Perseus Industrial 315 Features
- Scalable DIN-rail architecture with RTU expanders
- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- LTE: Global
- 2xRJ11 port – max. 2 external sensors 1-Wire UNI per port
- RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more
- RTU (RS-485 Modbus-RTU): 1x terminal block (with 12V)
- WLD-L: 2x WLD zone or 1x WLD-L (Water Location) for external Water Leak Detection sensing cable(s)
- DO (Digital Outputs): 2x DO (relays)
- DI (Digital Inputs): 5x DI (dry contact)

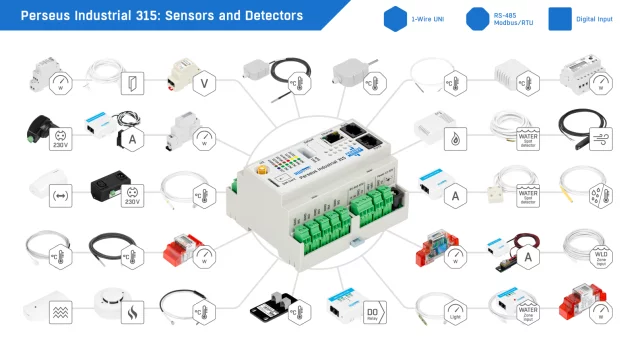

- Detectors: Smoke, door contact, motion, power presence, etc
- Device Alerts: SNMP, email, (SMS / Calls with external SMS GW)
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT, BACnet
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius – IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Scheduler
- Remote Configuration with SensDesk Technology
Typical Applications
- Technical room and infrastructure monitoring
- Warehouse, pharmaceutical and storage environment monitoring
- Remote machine and site monitoring
- Telco cabinet / BTS monitoring
- Greenhouse and agricultural monitoring
- Water leak detection and alarm systems

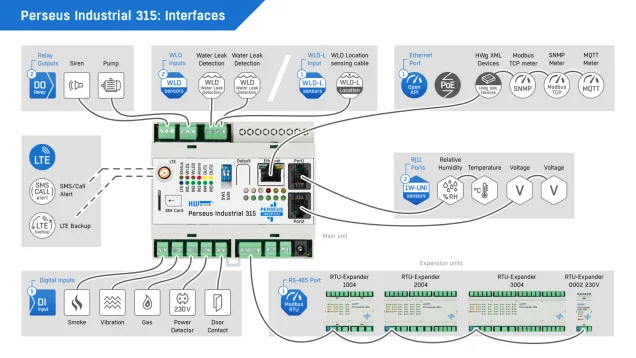

Perseus Industrial 315 Schematic
