RTU-HTemp Display is a wall-mounted indoor sensor for measuring temperature and relative humidity. It combines a local LCD display with an RS-485 / Modbus RTU communications interfac, making it suitable for direct integration into building management, HVAC and monitoring systems. The RTU-HTemp display shows the current temperature and relative humidity values directly at the installation site. Display brightness can be adjusted remotely via a Modbus register, including the option to turn the display off.

RTU-HTemp Display can be used with Perseus remote environmental monitoring solutions. RTU-HTemp Display supports automatic sensor detection and variable configuration using the UNI3 extension to help reduce installation time on site. The devie has a plastic case and the LCD screen can be orientated to suit the installation format, along with the sensor probe. The sensor has a bracket for screw plate mounting.

The RTU-HTemp Display can be used for indoor or outdoor temperature and humidity monitoring. The device case is IP40 rated for outdoor use. Measured values are shown on the display and transmitted to the system over Modbus RTU. Based on the temperature and humidity data measured, the sensor can calculate the dew point, absolute humidity or specific humidity and operates over a temperature range of -30°C to +80°C.

The RTU-HTemp Display combines a local LCD display with an RS-485 / Modbus RTU communications interface, making it suitable for direct integration into building management, HVAC and monitoring systems.

Features

Temperature and humidity probe with Modbus RTU connectivity and a display showing actual values
LCD display
Additional units indication and calculation
Easy wall mounting
IP65/40 protection

Measurement Specifications

Measurement	Range	Accuracy	Resolution	Technology
Temperature	-30 to +80°C	0.4	0.10	Semiconductor
Humidity (Relative)	0–100 %RH	±2.5 %RH (5÷95 %RH / 23°C)	0.10	Semiconductor
Dew Point	-60–80 DP°C	±1.5°C (T<25°C / RH>30 %RH)	0.10	Semiconductor
Humidity (Absolute)	0–400	±3g/m3 (T less than 40°C)	0.10	Semiconductor
Humidity (Specific)	0–550	±2g/kg (T less than 35°C)	0.10	Semiconductor
Mixing Ratio	0–995	±2g/kg (T less than 35°C)	0.10	Semiconductor
Specific Enthalpy	0–995	±3kJ/kg (±3kJ/kg)	0.10	Semiconductor

RTU-HTemp Display Models

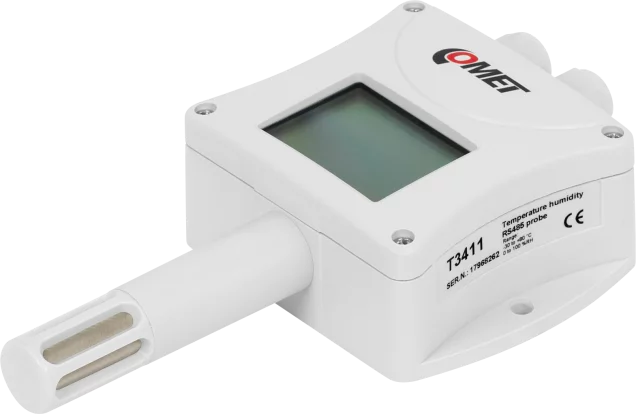

RTU-HTemp T3411: built-in probe

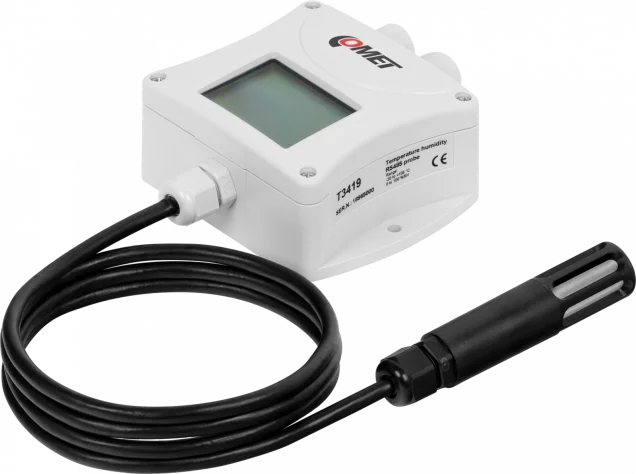

RTU-HTemp T3419: attached probe

Applications

Outdoor temperature monitoring
Wide-range monitoring systems with number of measurement points
Industrial monitoring and control
Food manufacturing and processing
Residential area monitoring
