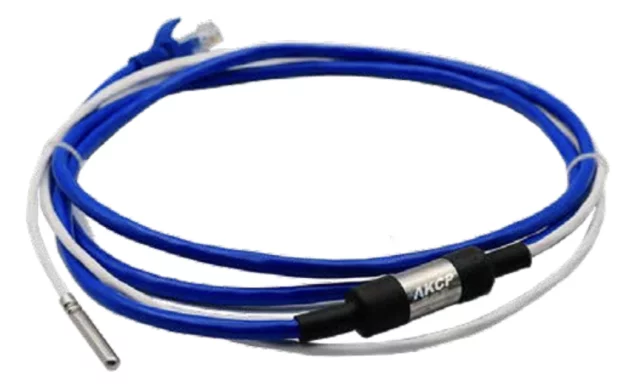

AKCP Ultra Cold Temperature Sensors

The AKCP PT100 Ultra Cold Temperature sensor is suitable for temperatures as low as -200°C (-328°F) and is deal for monitoring vaccines and medical products based on mRNA technology that require ultra cold storage. The sensor uses a platinum probe that varies in resistance with temperature changes. The sensor has good stability with immunity to electrical noise making it also suitable for use in industrial environments as well as medical applications

This Temperature Sensor is suitable for monitoring a wider range of temperatures from -200°C to +150°C (-328°F to 302°F).

The Ultra Cold sensor is based on an RTD type sensor (Resistance Temperature Detector) made from Platinum. As temperature changes so do the resistance of the metal. This is precisely measured to give a temperature reading. The accuracy of the sensor is within 0.2°C (0.4°F) and is compatible with the sensorProbe+ platform only.

PT100 Ultra Cold Sensor Specifications

• Measurement Range: -200°C to +150°C / -328°F to +302°F
• Measurement Resolution: 0.1°C increments / 0.2°F increments
• Measurement Accuracy (Typical): +/- 0.15°C / +/- 0.3°F
• Communications Cable: RJ-45 jack to sensor using UTP CAT5e/6 cable
• Power Source: powered by the sensorProbe+ family units. No additional power needed
• Operating Environment: Temperature -35°C to 80°C / Humidity 20% to 80% (Non-Condensing)

The UCT sensor is available as a fixed 4.5m cable length and can be extended from the RJ45 Intelligent Sensor ports on sensorProbe+ base units up to 18m using a standard CAT5/6 LAN cable.
