NSR 42U Server Racks 800mm Wide 1000mm Deep

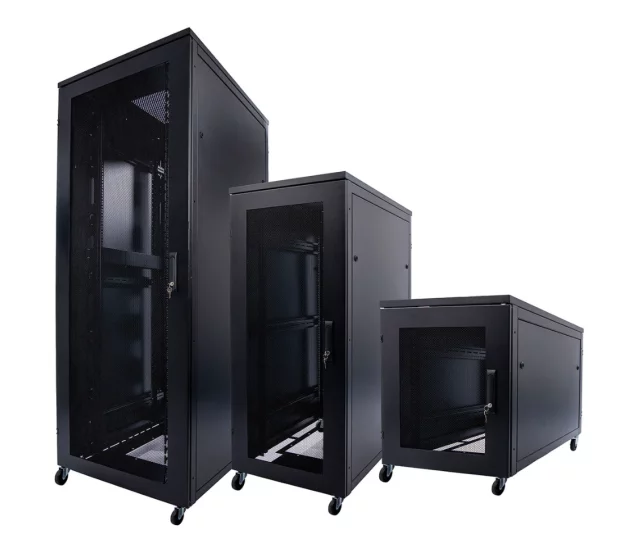

A 42U NSR range server rack for applications requiring an 800mm wide by 1000mm deep rack with an internal depth of 870mm and mesh doors, single at the front and wardrobe at the rear. NSR server racks combine a sleek, attractive styling with a toughened steel structure making them ideal for housing servers, IT equipment and server rack accessories in any office, server room or data centre environment. The NSR range is available in 9U, 12U, 15U, 18U, 21U, 24U, 27U, 30U, 33U, 36U, 39U, 42U, 45U and 47U sizes 600 or 800mm widths and 1000 or 1200mm depths.

NSR Server Rack Range Features

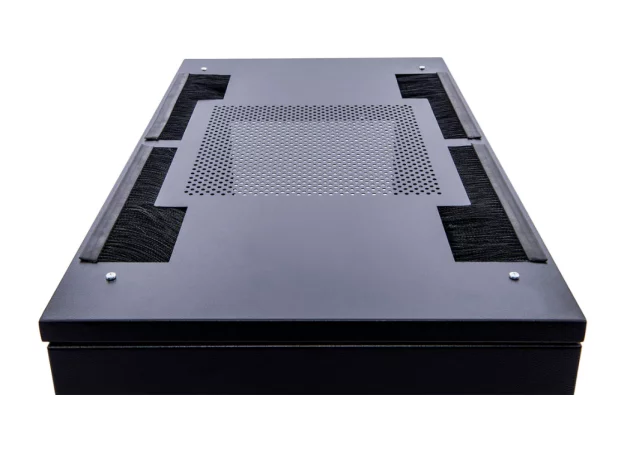

• Top Cable Entry in the cabinet with brush panels wide enough for 32A commando plugs
• Airtech Hex Mesh (with 82% airflow) front and rear door for increased ventilation with heavy duty hinges

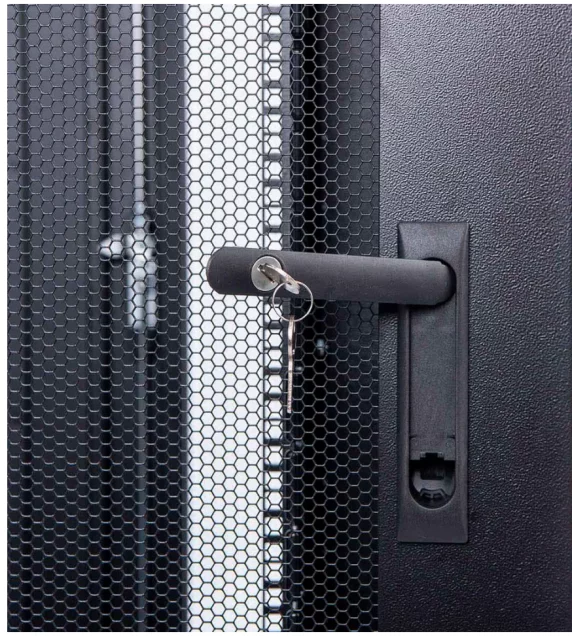

• Front door: mesh door with single point swing handle

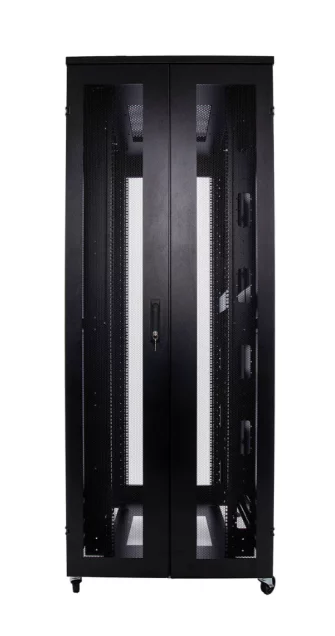

• Rear door: wardrobe mesh doors with swing handle and 3 point locking
• Removable side panels, secured when in place
• Server Racks supplied fully assembled with flatpack option
• Bolted construction provides for an easy on-site installation
• Excellent security and cable management
• Adjustable mounting profiles

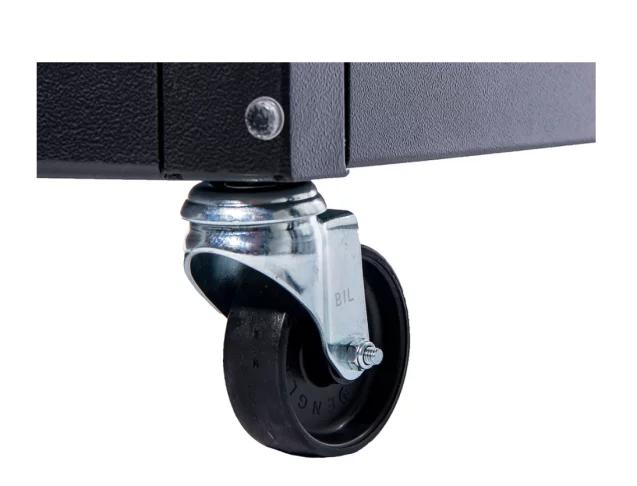

This 42U server rack is supplied with a powder coated paint finish of black or grey with other colours available upon request. Options include bottom cable entry, fan tray, heavy duty castors, jacking feet and flatpack delivery. The cabinet height quoted includes 60mm for the standard castor set supplied with the rack.

Options

• PDU mounting tray
• Cable trays of various widths

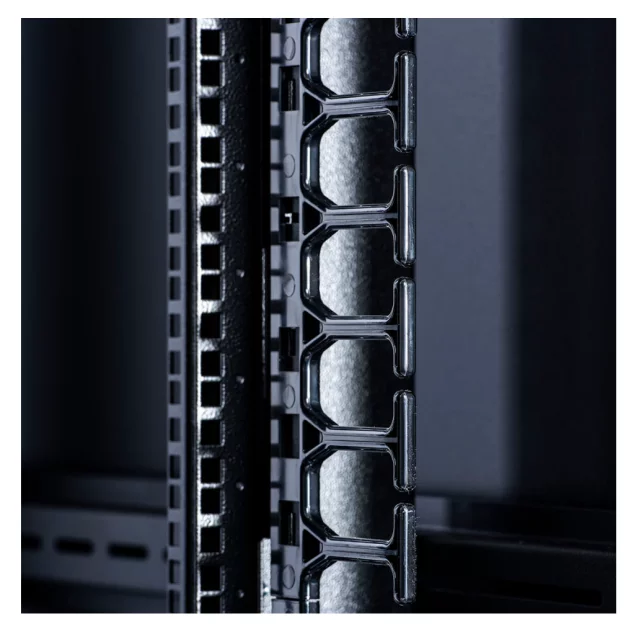

• Finger style cable management
• Cable jumper rings
• Front to rear cable trough for cable management
• Swing handle combination lock option
• Air dam kit for thermal efficiency
• U labels and screen-printed profiles available
• Heavy Duty Castors and Levelling feet available
