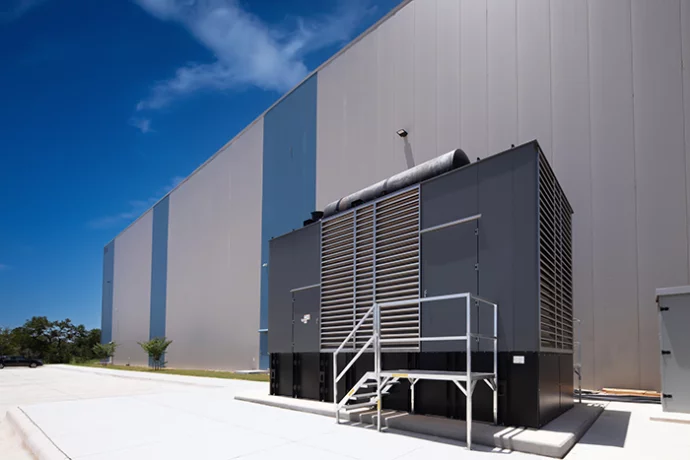

Why UPS System and Generator Integration Matters for Server Room Power Protection

A UPS system provides immediate protection during short power interruptions, helping to stabilise voltage and frequency while keeping critical equipment online. A generator provides extended backup power during longer outages. When the two systems are properly integrated, server rooms benefit from both instant ride-through protection and a sustained power supply.

Poor integration can create serious operational risks. These can include failed generator starts, unnecessary transfers, repeated battery cycling, brownouts during changeover periods, and service interruptions during wider site outages. For server rooms, the main priorities are continuous uptime, predictable transfer sequencing and simple ongoing maintenance.

In regulated or high-risk environments such as healthcare, finance and the public sector, organisations may also need documented testing and a clear design rationale. This should explain how transfer logic, synchronisation, automatic start-and-stop behaviour, and maintenance procedures are managed. Integration is not simply an electrical connection between two systems. It is an operational design decision that affects resilience, lifecycle cost, maintenance access and extended reliability.

Planning and Site Assessment Checklist

Every UPS system and generator integration project should begin with an extensive site survey and stakeholder review. This helps confirm the current electrical and IT infrastructure, the expected outage scenarios, and the required availability. Some organisations may only want a 4-8 hour runtime, which can be achieved with a day tank. Public sector blue-light emergency services may require longer and justify additional external fuel storage tanks.

Key areas to assess include load profiles, steady-state demand, inrush current, critical and non-critical load segregation, existing UPS ratings, generator capacity, fuel storage, expected runtime and generator starting arrangements. The survey should also review auto-start circuits, earthing and bonding, harmonics, power quality, HVAC capacity, acoustic restrictions, emissions considerations, and access for maintenance.

Practical logistics are just as important as the electrical design. Fuel delivery access, battery replacement routes, transfer switch panel clearances and spare parts access should all be reviewed before the proposed power protection plan is finalised. Protection coordination should also be documented to confirm that protective relays will not cause unnecessary lockouts during generator start-up.

The goal is to design the power protection strategy as part of the organisation’s business continuity plan to reduce organisational risks. A site that mainly needs protection from short utility interruptions may need a different architecture from one that must operate independently for long periods during prolonged power failures.

For more information on business continuity, see: https://www.thebci.org/thought-leadership/what-is-business-continuity.html

Integration Architectures and Key Components

The right integration architecture depends on the criticality of the load, available space, budget, existing infrastructure and required runtime.

Common approaches include static transfer between the UPS and the utility supply with generator auto-start, UPS systems operating alongside the generator supply with transfer interlocks, and multiple UPS units feeding segregated busbars supplied by paralleling generators.

Core components usually include automatic transfer switches, manual bypass switches, maintenance isolators, paralleling switchgear, rack power distribution units and supervisory control systems. These systems need to work together so that the UPS, generator, transfer devices and monitoring platform all follow a clear operating sequence.

Cable routing and segregation should also be considered early. Separating power, control, and instrumentation cabling can reduce interference, simplify fault finding, and make future upgrades easier. Monitoring should capture generator status, ATS position, UPS metrics, alarms, and start or stop events in a single view wherever possible. This gives engineering teams a clearer picture during an incident and helps speed up fault investigation.

Automatic Transfer Switches, Paralleling and Generator Controls

Automatic Transfer Switches (ATS) or Automatic Mains Failure (AMF) panels are central to any UPS and generator integration. Automatic transfer switches need to be specified for fault levels, continuous current, switching duty and expected operations per hour. Manual transfer and bypass arrangements should also be designed to enable safe maintenance without interruption to critical loads.

For sites with multiple generators, paralleling switchgear and synchronisation controllers may be required. These allow generators to share load smoothly, support staged start sequences and reduce unneeded fuel use. Generator controllers should support programmable logic for load pickup, load shedding, cooldown cycles, and fault handling.

Clear local indicators are also important. Transfer devices with local mimic panels and visible changeover status make on-site troubleshooting easier, especially during emergency callouts. Where possible, switchgear and control systems should be selected from vendors with strong UK support and spare parts availability. This can reduce the mean time to repair when faults occur.

UPS and Generator Communication, Logic and Sequencing

Effective integration depends on automation between the UPS, generator, transfer switch and control systems. The UPS must be able to identify when generator power is stable enough to accept. The generator and transfer system must also prevent changeover if voltage, frequency or synchronisation conditions could put critical loads at risk.

A typical sequence would work as follows. When the utility supply fails, the UPS immediately supports the critical load on battery. The UPS or control system sends an auto start signal to the generator. Once the generator reaches a constant voltage and frequency, the system confirms that conditions are safe for transfer. The load is then transferred to the generator supply. When utility power returns and remains stable, the system follows a controlled reverse sequence back to normal operation.

The logic also needs to handle edge cases. These include generator failure to start, partial phase recovery, unstable voltage, brownout conditions and failed transfer occurrences. Programmable logic controllers or dedicated integration modules can make this easier to manage because sequencing can be updated without major rewiring.

Every integration should include a concise sequence-of-operations document. This should be included in the handover pack and used during maintenance, testing and incident review.

Testing, Commissioning and Maintenance Best Practice

Commissioning confirms whether the design works under monitored practical conditions. Testing should include simulated utility failure, full-load transfer, black-start verification, generator-failure scenarios, ATS cycling, synchronisation checks, and recovery to utility supply.

Where possible, commissioning should also capture voltage and current behaviour on both sides of the transfer device. This creates a useful technical record for future fault diagnosis and post-incident review.

Ongoing maintenance should include periodic UPS battery capacity testing, fuel condition sampling, generator load bank testing, ATS mechanical inspections, controller firmware reviews and alarm testing. Generator load bank exercises are especially important where generators are lightly loaded, as they can help reduce the risk of wet stacking and poor engine performance.

A clear maintenance plan should also define emergency callout SLAs, spare parts requirements, and responsibilities among IT, facilities, and external service partners. A digital logbook should record each generator start, alarm, maintenance visit, test result and corrective action. This gives teams a reliable history of system performance and helps demonstrate compliance during power audits.

UPS and generator integration is a systems engineering task, not solely a product installation. The design needs to account for protection, sequencing, communication, testing, maintenance and day-to-day operability.

A well-integrated system provides server rooms in data centres with immediate power protection during short-term power interruptions and sustained outages. By starting with a structured site assessment, selecting the right transfer and control architecture, documenting the operating sequence, and properly servicing the system, organisations can reduce the risk of downtime, avoid unnecessary equipment wear, and improve the durability of long-term power infrastructure.

For organisations reviewing an existing setup, the next step is to assess the current sequence of operations, confirm that testing represents real-world outage scenarios, and identify any gaps in transfer logic, monitoring, or maintenance coverage.

Summary

Whilst an uninterruptible power supply can be installed with a battery to provide a long runtime, from 5-10kVA and upwards, it may prove more cost-effective to install both a UPS system and a standby power generator. For a site survey or to discuss your UPS and generator power protection project, please contact our Projects Team on 0800 030 6838.
